Multi-Agent Environments

Testube 2.X introduces the concept of Multi-Agent Environments, which adds two major new capabilities:

1. The ability to run the same Workflow in multiple namespaces/clusters, (possibly at the same time!).
2. The ability to easily add ephemeral Runners to an Environment and run your Test Workflows on them.

The Multi-Agent functionality is available to any existing and new Testkube Environment, provided it has been upgraded to the latest version of the Testkube Control Plane and Testkube Agent.

Use Cases

Being able to connect multiple Agents to a single Testkube Environment unlocks several advanced usage scenarios, including:

• Execute the same set of tests across production, staging or testing environments to ensure consistent test execution.
• Execute the same set of tests in geographically dispersed environments to ensure consistent application behavior.
• Execute tests in local sandbox environments during development while having access to the centralized catalog of tests.
• Execute tests from multiple geographical locations against a (single) environment for realistic performance and e2e testing.
• Execute tests in ephemeral environments created during CI/CD pipelines for testing and deployment purposes - Read More.

Runner Agents

In addition to the mandatory Standalone Agent, Testkube also allows you to add an arbitrary number of Runner Agents to any Environment from the Agent Management section of your Environment Settings or directly with the CLI (see below).

Runner Agents (or just "Runners") are lightweight agents that can be installed in any namespace/cluster where you need to run your Testkube Workflows. Each Runner Agent has a name, a license type, an agent id, and an optional list of labels which can be used to select Agents for execution:

note

Testkube Environments always require a Standalone Agent for core functionality - Read More.

Running Workflows on Runner Agents

Once Runner Agents have been added to an Environment, they can be used to execute your Workflows:

• Via the Dashboard as described at Running a Workflow.
• Via the CLI by using the --target argument for the testkube run testworkflow command (see below).

When a Workflow has been executed on multiple Runner Agents, the Dashboard provides an expandable section for the corresponding executions, see Multi-agent Executions.

warning

Runner Agents do not support execution of legacy Tests and TestSuites.

Runner Agent Quickstart

1. Install your first Runner Agent

After installing the Testkube CLI and using testkube login to log in to your Testkube Environment, use testkube install runner <name> --create command to install your first Runner Agent:

$ testkube install runner staging-runner --create

This will create and install a Runner Agent named staging-runner that can now be used to run your Workflows.

2. Run your Workflows

Run your Workflows on a specific Runner Agent by specifying the name of the agent with the --target argument:

testkube run testworkflow my-k6-test --target name=staging-runner

This schedules the my-k6-test Workflow to run on the staging-runner Runner we created above.

tip

Check out the Multi-Agent CLI Overview for an overview of all available CLI commands related to Multi-Agent Environments.

Runner Agent modes

Runner Agents can be created in one of three different modes, impacting how they are selected for execution:

• Independent Runners (default) need to be targeted explicitly by name to run a Workflow (as in the Getting Started above).
• Grouped Runners can be targeted/filtered by labels/groups - allowing you to run a Workflow on either a single available Runner (of several) or on multiple Runners at once.
• Global Runners do not need to be targeted by name but can be filtered by labels, the default Standalone Agent works as a Global Runner.

note

If you need to change the type of Runner Agent, you'll need to remove it first and re-add with the new type.

Independent Runners

A Runner not defined as either Grouped or Global as described below, will work as an "Independent Runner" and thus needs to be targeted explicitly by name to for Workflow execution.

For example, the following command runs the my-k6-test Workflow on the Runner named staging-runner:

testkube run testworkflow my-k6-test --target name=staging-runner

Specifying multiple --target name=XXX arguments will run your Workflow on one of the selected runners, if you want to run on all of them use the --target-replicate argument described below.

tip

Independent Runners are useful for ephemeral use-cases when you need to target specific Workflow Executions - Read More.

Grouped Runners

Grouped Runners are defined by a --group argument when creating/installing:

# install grouped runner
$ testkube install runner staging-runner --create --group staging-runners

Grouped Runners need to be either targeted by name (as the independent runners above), or by group, which will use any available Runner in that group for execution:

# run Workflow on an available Runner in the staging-runners group
testkube run testworkflow my-k6-test --target group=staging-runners

If you want to run on all Runners in a group, use the --target-replicate name argument:

# run Workflow on all Runners in the staging-runners group
testkube run testworkflow my-k6-test --target group=staging-runners --target-replicate name

tip

You can use --target-replicate to enable execution across multiple runners as described below.

Global Runners

Global Runners are created with the --global argument:

# install Global Runner
$ testkube install runner global-runner --create --global

Global runners will be used either when no target is specified to the run command or when a corresponding label-filter (see below) applies to them.

# Run Workflow on an available Global Runner
testkube run testworkflow my-k6-test

info

The required Standalone Agent always works as a Global Runner.

Runner Targeting

Once you have created Runners in your Environment, you can select them both implicitly and explicitly when executing your Workflows. Selection of Runners can be done both at runtime when executing a Workflow via the CLI or Dashboard, or at design-time when defining Workflows, CronJobs, Triggers, etc.

Using labels for Runner selection

Labels can be added to any type of Runner with the -l <name=value> argument during creation, these can then be used to filter out Runners that are used for execution:

# run Workflow on a Runner in the staging-runners group with the region=europe label
testkube run testworkflow my-k6-test --target group=staging-runners --target region=europe

# run Workflow on a Global Runner with the region=europe label
testkube run testworkflow my-k6-test --target region=europe

note

Since Independent Runners always need to be targeted by name, adding labels to them provides no added benefit in regard to targeting/execution.

Running on Multiple Runners

If your target argument(s) selects multiple Runners as shown above, Testkube will by default execute your Workflow on only one of the selected Runners (randomly selected).

If you instead want to execute your Workflow on all selected Runners simultaneously you can add --target-replicate <label> to the testkube run testworkflow command, which will "shard" the Workflow Execution across all unique matches for the specified label (which could be name).

For example:

testkube run testworkflow my-k6-test --target name=runner1 --target name=runner2 --target-replicate=name

will run the specified Workflow on both Runners since their names are unique.

A more advanced use-case: For Grouped Runners created with these arguments:

name=runner-1 group=my-group team=users
name=runner-2 group=my-group team=users
name=runner-3 group=my-group team=something

When executing a Workflow with

testkube run testworkflow my-k6-test --target group=my-group --target-replicate=team

This makes two groups, sharded by team:

• The users team: name=runner-1 group=my-group team=users and name=runner-2 group=my-group team=users
• The something team: namerunner-=3 group=my-group team=something

Because of that, the execution will be run twice:

• any (1) of: name=runner-1 group=my-group team=users and name=runner-2 group=my-group team=users
• any (1) of: name=runner-3 group=my-group team=something

Targeting Runners in Testkube Resources

There are several situations where you might want to target specific Runners in your actual Testkube Resource definitions:

• Workflows - you might want to ensure that a Workflow always runs on a Runner with a specific name or label - Read More.
• Workflow CronJobs - you might want to target scheduled Workflow Executions to specific Runner(s) - Read More.
• Workflow execute Steps - you might want Composite Workflows to execute Workflows on specific Runner(s) - Read More.
• Triggers - you might want Kubernetes Event Triggers to trigger Workflow Executions on specific Runner(s) - Read More.
• Execution CRDs - you might want an WorkflowExecution CR to trigger Workflow Executions on specific Runner(s) - Read More.

Each of these definitions supports a corresponding target property:

...
    target:
      match: [ <label>: <values> ]
      not: [ <label>: <values> ]
      replicate: [<labels>]
...

The following targets a specific Runner by name:

...
    target:
      match:
        name:
          - staging-runner
...

or run on a Grouped Runner:

...
    target:
      match:
        group:
          - region-us
...

Add replicate to mimic --target-replicate behavior described above, and not to exclude specific Runners, for example:

Run on all Runners in the region-us group, except the k8s-1.21-spain Runner:

...
    target:
      match:
        group: [region-eu]
      not:
        name: [k8s-1.21-spain]
      replicate:
        - name
...

Queuing of Workflow Executions

When requesting to run a Workflow on a specific Agent, either by name or label(s), and no matching Agent is available, Testkube will queue the execution of the Workflow indefinitely; once a corresponding Agent is available, the queued Workflow will be executed accordingly (barring Floating license restrictions described below).

You can abort queued executions using the corresponding CLI Command or from the Dashboard.

The Standalone Agent in Multi-Agent Environments

Each Testkube Environment requires a Standalone Agent which provides core functionality for Triggers, Webhooks, Prometheus metrics, etc.

Standalone Agents are installed when initially creating an Environment and shown on the bottom of the list of Agents with the label runnertype: superagent.

Standalone Agents work as a Global Runner (described above) and can also be explicitly targeted in several ways:

• By Label: testkube run tw my-k6-test --target runnertype=superagent
• By Name: testkube run tw my-k6-test --target name=tkcenv_xxxxxxxxxx
• By ID: testkube run tw my-k6-test --target id=tkcroot_xxxxxxxxxx

The ID is shown in the list of Agents (see below), the Name is the same xxxx prefixed with tkcenv instead.

Licensing for Testkube Agents

Testkube Agents can be assigned either Fixed or Floating licenses.

• Agents assigned a Fixed License can always run Workflows independently at any time. The Standalone Agent required for each Testkube Environment always requires a fixed license.
• Agents assigned a Floating license share the ability to execute Workflows concurrently; if one Agent with a floating license is executing a Workflow, a second agent will queue Workflow executions until the first agent is complete. If you, for example, purchase two floating licenses and assign those to 10 agents, two of those agents will be able to execute Workflows concurrently at any give time.

Floating licenses are useful for automated and/or ephemeral use-cases where you don't know in advance how many agents you will have at any given point in time, and/or you don’t mind if your Workflow executions get queued.

Assigning Licenses to Agents

Agents are by default assigned a fixed license (as in all the examples above), use the --floating argument with Agent creation commands to instead assign a floating license, for example:

# install temporary Runner Agent using a floating license
$ testkube install runner pr-12u48y34-runner --create --floating

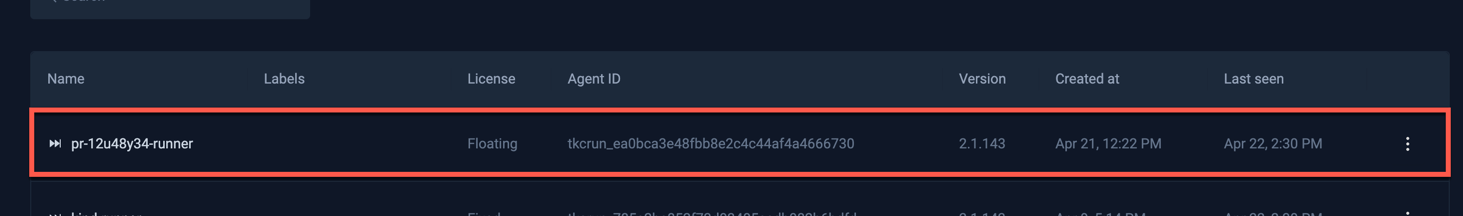

The Agent will be shown with the License Type "Floating" in the list of Agents:

License Enforcement

The Agent limit for both Fixed and Floating Licenses is counted and enforced at the organization level, i.e., across all your environments. Furthermore:

• The Standalone Agent required for each Environment will always be assigned a Fixed license.
• You will only be able to create as many fixed Agents as you have Fixed licenses in your Testkube plan.
• You will need to have at least one Floating license in your Testkube plan to be able to create Agents with the --floating argument.

Please don't hesitate to Get in Touch if you have any questions/concerns about licensing.

Migrating existing Environments

If you have an existing Environment created before the Multi-Agent functionality was introduced, and that Environment already has Workflows being executed by CI/CD, CronJobs, Kubernetes Event Triggers, etc., these will continue to be executed on any Global Runner Agent (including the required Standalone Agent) connected to your Environment unless you update the corresponding triggering commands/configuration to target a specific Runner Agent, either by name, group or label as described above.

info

Existing Environments that do not make the use of Runner Agents will continue to work as before, it is only when you start adding additional Runner Agents that you might need to adjust how your existing Workflows are triggered by external sources.
