Installing Runner Agent with Helm Charts

You can install lightweight Runner Agent using kubeshop/testkube-runner Helm Chart.

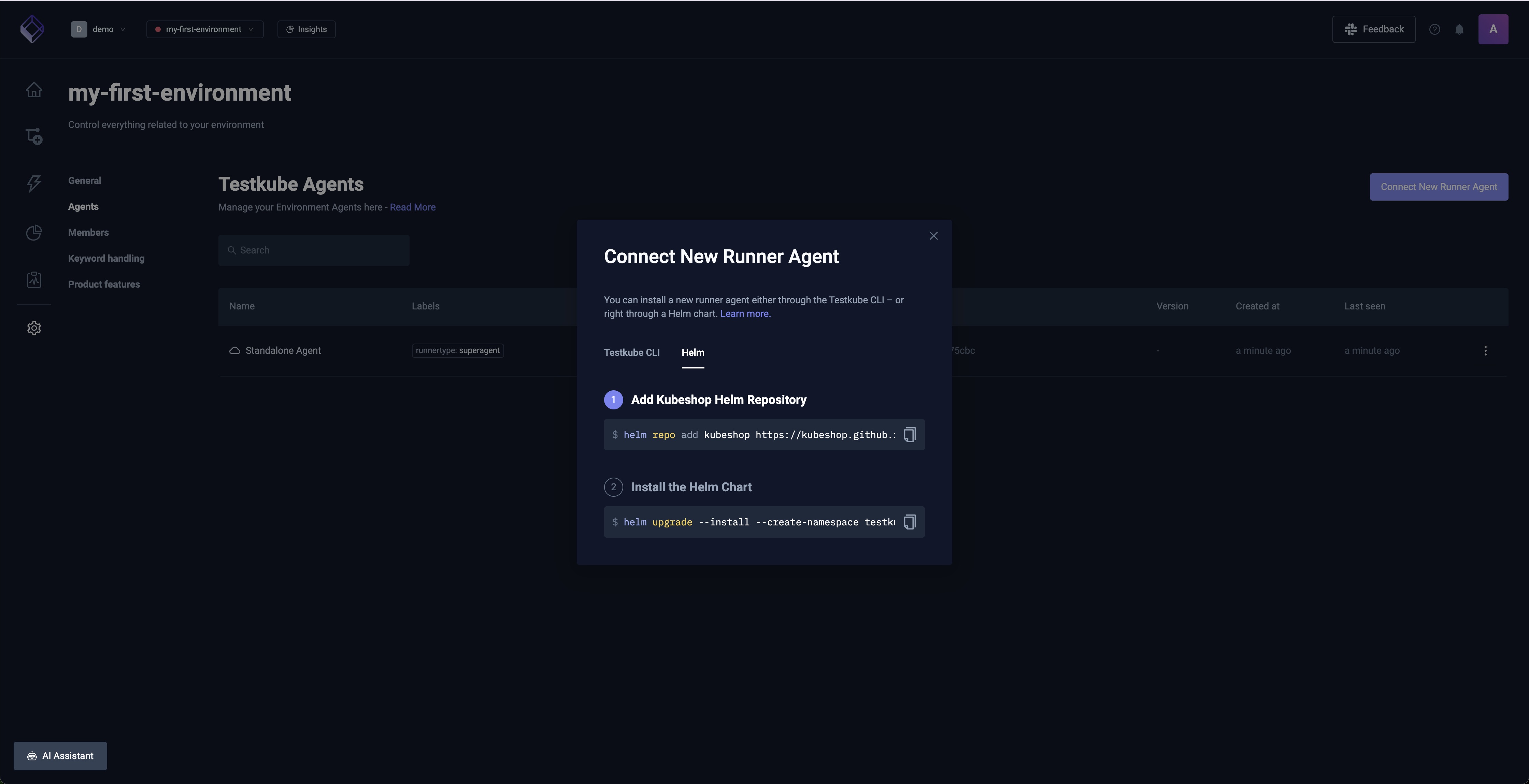

Creating Runner Agent for Helm Charts

To create Runner Agent, you can run testkube create runner command, like:

testkube create runner my-name --label my-label=my-value

After selecting the environment (unless you pass --env env-id parameter), it will display information with agent ID and secret key:

ID:             tkcrun_55c1c5845a1fd20d9bf5de7737311959
Name:           my-name
Type:           Runner (reserved)
Created:        25 Apr 25 10:18 +0200 (0s)
Disabled:       no
Secret Key:     tkckey_run_6kivz9hvgoxwd9ihqq9xyhihk1y3qzua
Last Activity:  never
Last Version:
Last Namespace:
Environments:
    my-environment (tkcenv_9868d11cdb3ca577)
Labels:
   my-label: my-value
Policy:
   Required Matching Labels: name

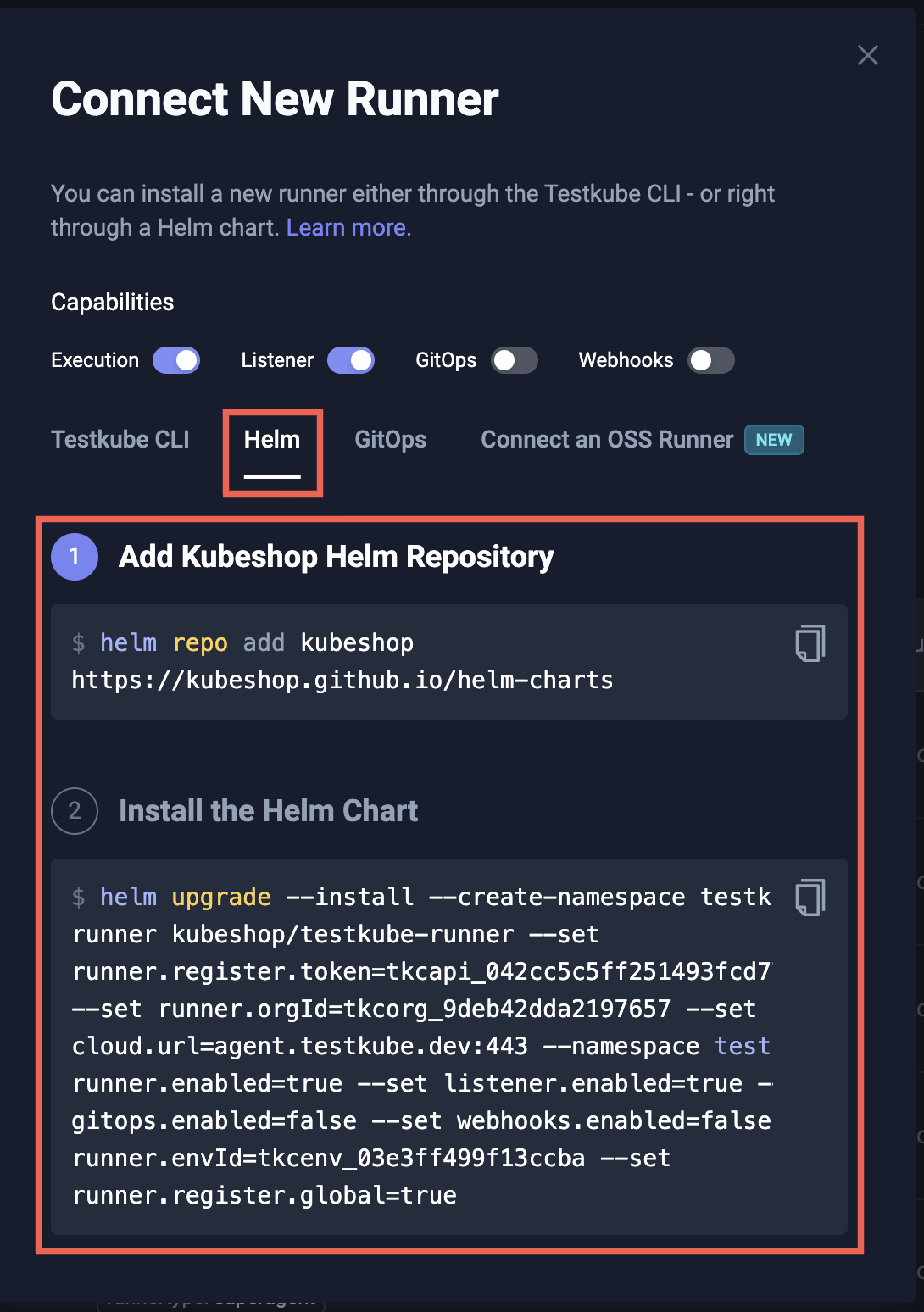

Basic installation

1. Add the Kubeshop Helm repository:

   helm repo add kubeshop https://kubeshop.github.io/helm-charts
2. If this repo already exists, run helm repo update to retrieve the latest versions of the packages. You can then run helm search repo testkube to see the charts.
3. Install the Helm Chart:

   helm upgrade --install \
     --create-namespace \
     --namespace my-runner \
     --set 'runner.id=<your:tkcrun_:runner_id>' \
     --set 'runner.orgId=<your:tkcorg_:organization_id>' \
     --set 'runner.secret=<your:tkckey_run_:key>' \
     --set 'cloud.url=agent.testkube.io:443' \
     my-runner kubeshop/testkube-runner

You can also use own values.yaml file, based on our defaults:

runner:
  id: "<your:tkcrun_:runner_id>"
  orgId: "<your:tkcorg_:organization_id>"
  secret: "<your:tkckey_run_:key>"

cloud:
  url: "agent.testkube.io:443"

Cookbook

There are common things that you may want to set up in your values.

Install Runner in one namespace and run executions in another

To separate concerns, you may separate your runners from the execution:

execution:
  default:
    namespace: my-execution-namespace

Disable access to Kubernetes from executions

By default, your executions will use a ServiceAccount that has access to pods, jobs, and events. It's required for Parallel Steps and Services.

To disable it, you can disable auto-creation of ServiceAccount for executions:

execution:
  default:
    serviceAccount:
      autoCreate: false
      # name: my-custom-service-account # you can also use your own service account

tip

Read more about ServiceAccounts below

Support additional namespaces

You can also allow the runner to schedule in multiple namespaces.

In your values.yaml file:

execution:
  additionalNamespaces:
    'custom-namespace':
      serviceAccount:
        autoCreate: false # set 'true' to allow parallel steps & services
        # name: my-custom-service-account # you can also use your own service account

Then, in your workflow configure:

spec:
  job:
    namespace: custom-namespace

Setting Global Template

For each runner, you may set a custom Global Template. It will be used as the foundation for every execution in this Runner Agent.

It's useful for example to set up OpenShift's security context, that will be separate for each runner:

globalTemplate:
  enabled: true
  spec:
   pod:
     securityContext:
     enabled: true
     fsGroup: 1000650001
     runAsUser: 1000650001
   container:
     securityContext:
       runAsUser: 1000650001
       runAsNonRoot: true

Service Accounts

The Runner Agent Helm Chart creates two kinds of ServiceAccounts:

• exec-sa-testkube - ServiceAccount for the Execution Pods; it allows the Execution to schedule and monitor Pods for services and parallel syntaxes.
• agent-sa-testkube - ServiceAccount for Agent Pods; it allows the Agent to (1) create pods for executions, and (2) read configmaps/secrets in own namespace.

The agent-sa-testkube ServiceAccount needs to be in the Agent's namespace, as it's used by the Agent's Pod. The exec-sa-testkube ServiceAccounts are deployed to the namespaces where the executions will run as they need to use them in the above situations.

note

The -testkube suffix in the ServiceAccount names above and below might differ based on the underlying Helm Chart release name.

Example: Using the same namespace for Agent and Executions

By default, we deploy both Agent and Executions to the same namespace the Helm Chart is released to. Then, agent-sa-testkube and exec-sa-testkube are deployed in that namespace. agent-sa-testkube has wider permissions and is used by Agent, exec-sa-testkube has smaller permissions and is used by Executions.

Example: Avoid ServiceAccount for the executions

If you are not using services and parallel syntax, you may want to set Helm Chart values to:

execution:
  default:
    serviceAccount:
      autoCreate: false

This way, the executions will use default or specified ServiceAccount, that likely won't have access to i.e. reading pods (in opposite to auto-created one). This blocks the ability of using services and parallel though, unless you will provide service account name in the spec with

  pod:
    serviceAccountName: "my-name-or-i-e-agent-sa-testkube"

tip

Read more about Workflow pod configuration at Test Workflows - Job and Pod Configuration.

Example: Run executions in a different namespace than the Agent

For better security, you may isolate the executions to be running in a different namespace than the Agent. This way, you ensure that they cannot i.e. read Agent's data (like Agent Token), or anything else. Also, this could help to i.e. deploy multiple runners in the same namespace, while having the executions for each of them in a different one.

To achieve that, you can use such Helm Chart values:

execution:
  default:
    namespace: "my-namespace-where-only-executions-should-run"

In such case:

• agent-sa-testkube ServiceAccount will still be deployed in the Helm Chart release namespace,
• exec-sa-testkube ServiceAccount will be deployed in my-namespace-where-only-executions-should-run namespace

Example: Full Security

You can as well combine both cases - avoid parallel/services and deploy executions to a separate namespace. This way you have full isolation.

execution:
  default:
    namespace: "my-namespace-where-only-executions-should-run"
    serviceAccount:
      autoCreate: false

Example: Multiple Namespaces

To allow Runner to support

  job:
    namespace: "non-default-namespace"

in the Test Workflow's spec (see Test Workflows - Job and Pod Configuration), you can provide additional namespaces alongside the default one:

execution:
  additionalNamespaces:
    non-default-namespace:
      serviceAccount:
        autoCreate: true
