Test Insights

Insights turns your Testkube executions into a real-time dataset you can analyze to better understand how you work. This feature allows teams to track key performance indicators including the number of test executions, pass/fail rates, execution durations, and more, all within a user-friendly Dashboard.

With Test Insights, DevOps and QA managers can quickly answer crucial questions that impact the testing cycle and overall software quality, such as:

• Which tests take the longest to execute and why?
• Which tests have the highest failure rates?
• How do test performance metrics vary by type of test or by the tools used?
• How do key test execution metrics change over time?

By integrating Test Insights into your testing workflow, your team can leverage several benefits:

• Enhanced Visibility: Gain a clear overview of testing activities and outcomes, helping you manage and prioritize testing resources more effectively.
• Data-Driven Decisions: Make informed decisions about where to allocate efforts for improving test efficiency and reliability.
• Improved Test Efficiency: Identify and address inefficiencies in your testing process, leading to faster development cycles and higher quality software releases.

Using Test Insights

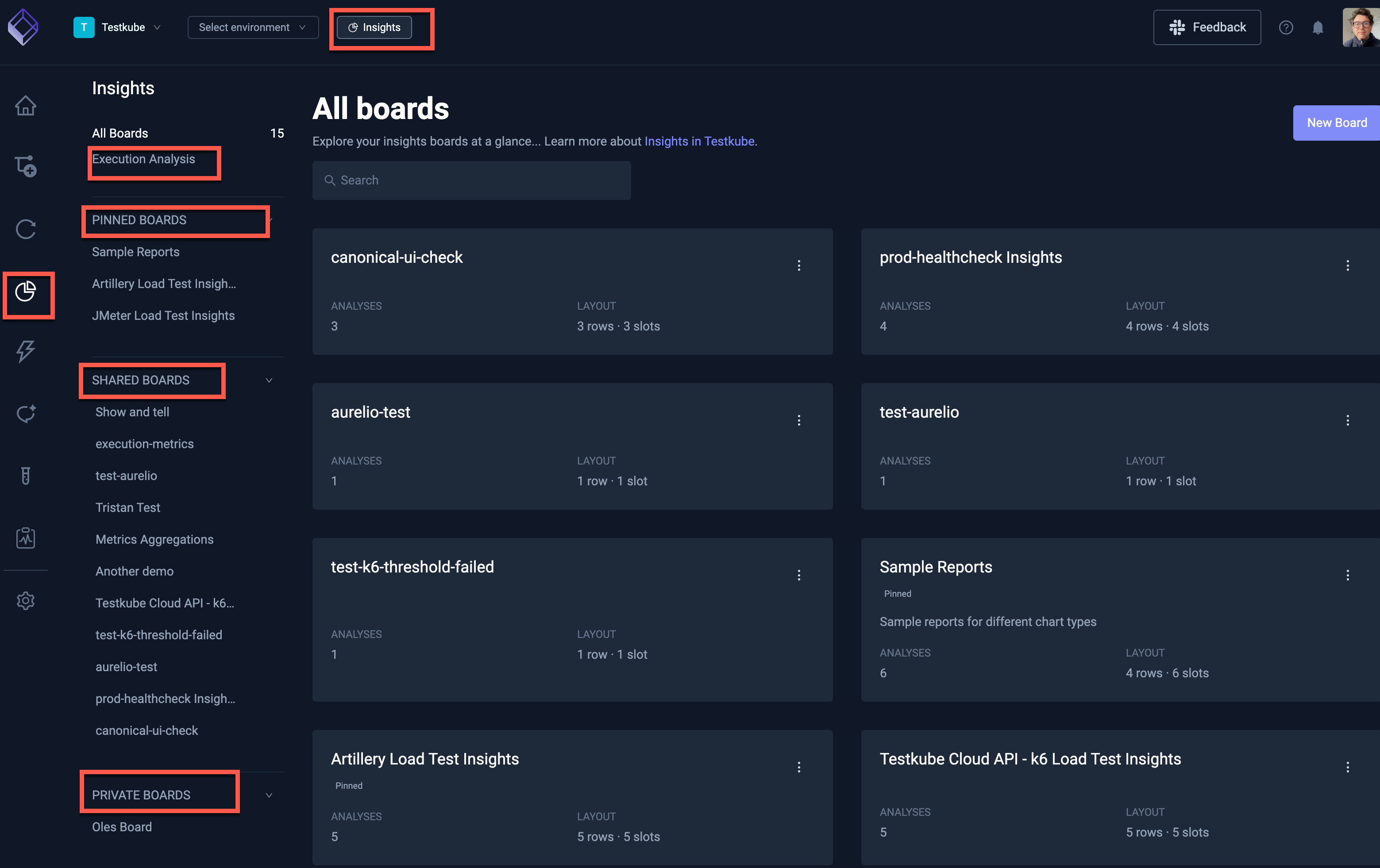

Test Insights are available from the top menu, which will take you to a default "Execution Analysis" Board with premade charts.

The "Your Boards" section contains all Boards created within your Organization.

note

There is currently no way to limit access to individual boards for Organization members; everyone has access to all boards and can thus see all data within (which is read-only).

If this is a concern you can disable Insights entirely for from the Product Features Panel.

Boards

Default Board: Execution Analysis

The default Execution Analysis board has three sections which all show data over the last month:

The top part of the Execution Analysis module shows high-level execution metrics.

Underneath you can find you can find a quick overview of execution count duration. You can either group your executions by status or workflow by using the selector.

Lastly, the execution efficiency analysis shows tests by execution time and frequency. Tests that frequently run and take longer to execute appear in the top right quadrant, highlighting them as prime candidates for optimization to reduce testing bottlenecks, improve cycle times and optimize infrastructure costs

Managing Custom Boards

You can add as many boards as you need to Insights under an Organization and each board can in turn contain as many analysis charts as needed, allowing you to group your analysis in any way that aligns with your testing activities.

You can manage a board as follows:

• Create Board: You can create a board by clicking on "Create new board". After filling in details such as name and description, you can add your first analysis.

• Rearrange board: Hover an analysis insight and in the top-right corner you can find a handle to drag and drop your analysis. You can move it around to a new row or put it in front or behind another analysis. You can only add up to three analysis per row. Responsiveness of boards are limited to larger screen sizes.

• Update Board: You can go to the board's setting by clicking on the dotted menu. Here you can update both the name and the description.

• Delete Board: You can go to the board's setting and delete the board in the danger zone at the bottom. Your board and all analysis will be removed, no execution data will be deleted.

Working with Analyses

You can add as many analyses to a board as needed; use the "Add a new analysis" button on the top right to do so:

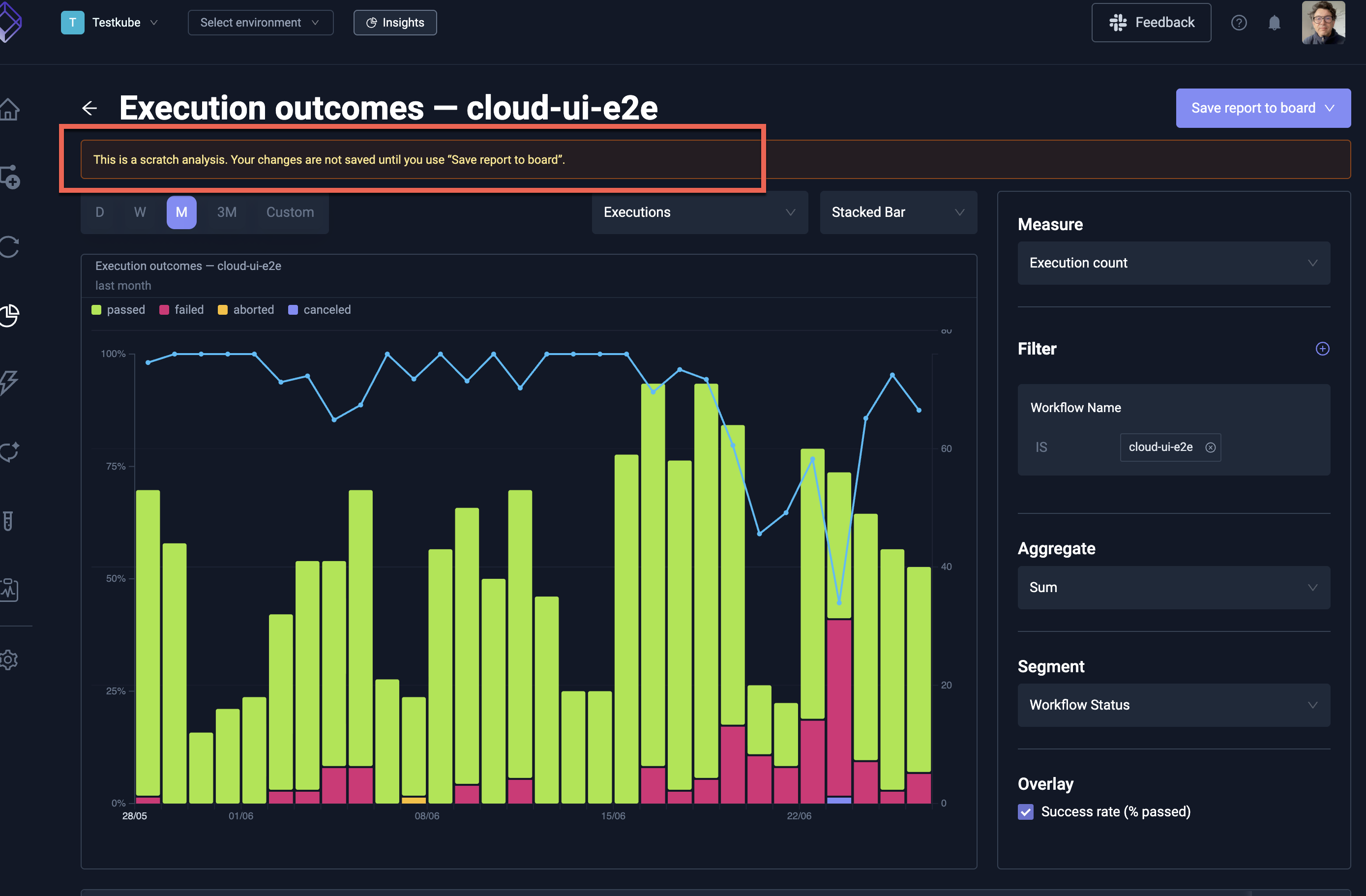

Adding a board takes you to the Analysis editor where you can configure what data to show and how to show it.

The anatomy of the Analysis Editor

At the top you can see a Period Selector for selecting the last day, week, month, quarter or any custom period. The interval is automatically inferred depending on the size of the period. A period less than two days will have an hourly interval, then daily, and up to weekly when looking at a quarter.

More to the right, you can see the Analysis Selector: it defaults to Executions time series, but you can also select Executions Bar Chart, Efficiency Quadrant Analysis and Pass/Fail Statistics (all described below)

Under the period and analysis selector, you will find your selected chart with its controls on the right side. The controls vary depending on the selected chart and include the ability to filter executions on Workflow name, environment, status and labels (both existence or specific label values).

tip

Filtering on workflow name support regexes, so you could perfectly filter all workflows prefixed with performance by adding a performancy.* filter.

One limitation is that you currently cannot negate a filter literal yet.

Executions Time Series

The execution time series allows you to analyse your executions over time.

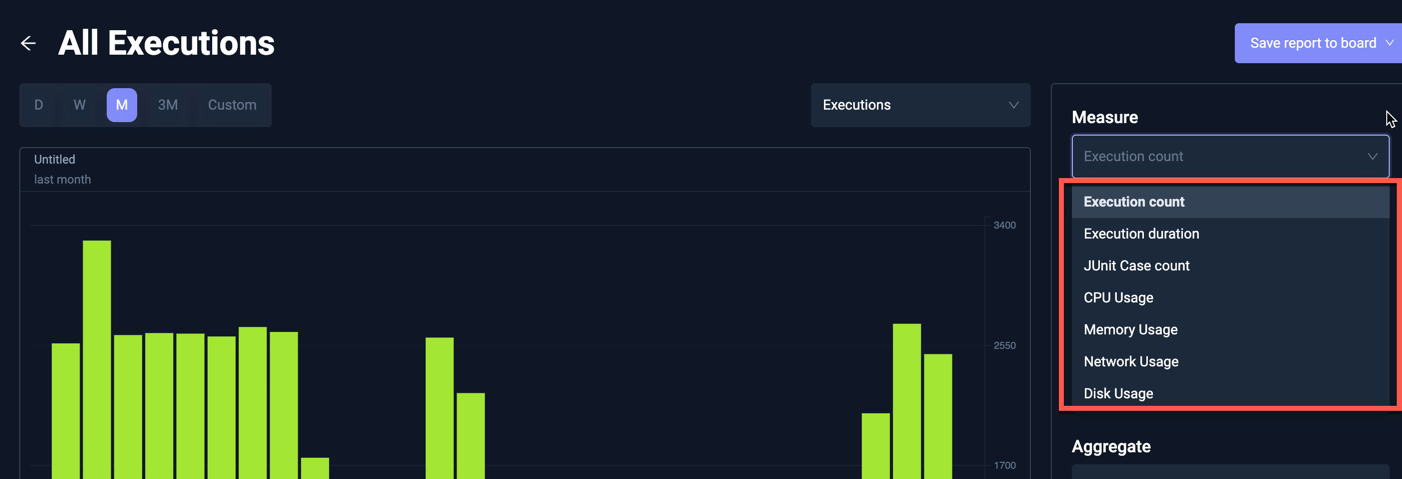

Executions Measure

The x-axis will always be the time, whereas the y-axis is defined by your Measure. There are three categories of measures that are supported.

• Execution measures: These measures give high level summary information about your executions.
  • Execution count: Use this to see how many Workflows were executed
  • Execution duration: Use this to understand how much time your tests are taking.
  • JUnit Case count: The number of JUnit tests execution based on extracted JUnit Reports.
• Resource measures: See resource usage across executions. Read more about Resource Aggregates in Insights.
  • CPU Usage: Use this to analyze CPU consumption of your Workflow executions.
  • Memory Usage: Use this to analyze Memory consumption of your Workflow executions.
  • Network Usage: Use this to analyze Network usage of your Workflow executions.
  • Disk Usage: Use this to analyze Disk usage of your Workflow executions.
• Granular Metrics: When granular metrics are enable you will see additional measure options depending on the types of reports your workflows produce.

Executions Aggregate

You can use the Aggregate to decide how to treat multiple executions of the same workflow within each interval. For example, for the Execution duration you can aggregate on sum, average, minimum or maximum.

note

The actual aggregate(s) available will depend on which Executions Measure you selected.

Executions Segment

Lastly, you can set a Segment which will break down your executions. You can do this by the status to see which executions passed or failed, by workflow name or by any of the labels found on the executions.

Executions Table and Drill Down

Besides a graph view, the Executions time series analysis also comes with a table view. This is useful to see trend across a single segment. Currently, segmentation within a graph is also limited to 25 largest segments. For segmentation with a high cardinality, you can view the remaining segments within the table, which are most often too tiny to see within the Graph View.

You can click on either the segment name or a table cell value to drill down on the execution references that relate to this. Imagine that you filter on failed executions for a certain label, and you wonder which executions are failing. Drilling down easily allows you to analyse and troubleshoot these executions.

For example - the following Analysis shows all Executions labeled junit=true, with February 7th highlighted when there were 12 failed executions:

Clicking on the "12" in the table will show those 12 executions in a table:

• Selecting an execution will open the corresponding Workflow Execution Details panel.
• Selecting the "Back to overview" link on the top right of the table will take you back to the table view above.

Executions Bar Chart

This shows a bar chart with the number of executions for each selected segment. For example, the below Analysis shows the top failing Workflows over the last week:

Efficiency Quadrant Analysis

The execution efficiency analysis shows tests by execution time and frequency. Tests that frequently run and take longer to execute appear in the top right quadrant, highlighting them as prime candidates for optimization to reduce testing bottlenecks, improve cycle times and optimize infrastructure costs:

Hovering a marker in the chart reveals the corresponding Workflow.

The table below the chart shows plotted Workflows sortable by a number of attributes.

Pass/Fail Stats

The pass/fail stats shows details about workflow executions that failed or passed. These analysis are useful to quickly understand if certain workflows need attention.
