Workflow Details

Selecting a Workflow in the Workflows Overview reveals a number of tabs to work with the selected Workflow.

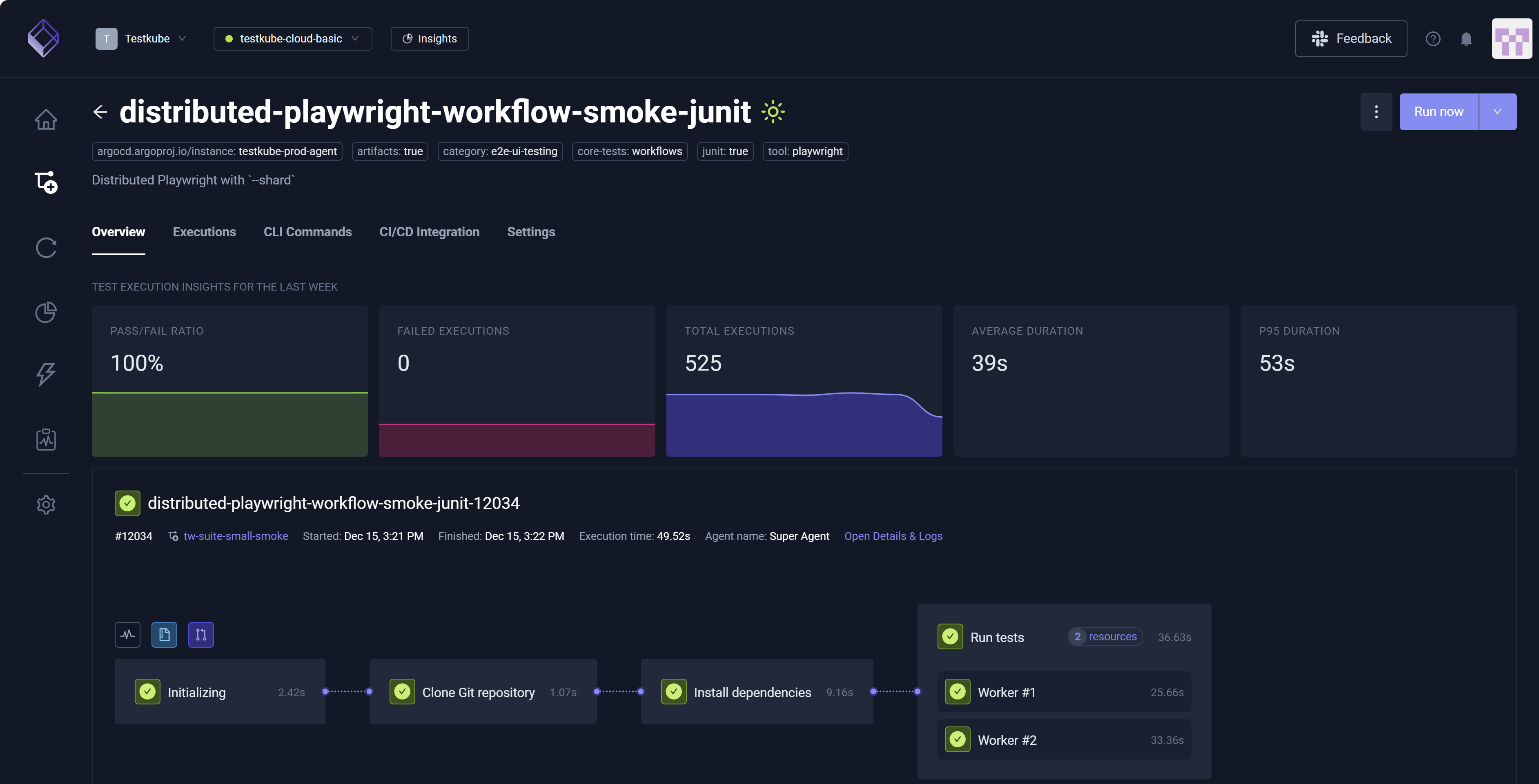

Overview Tab​

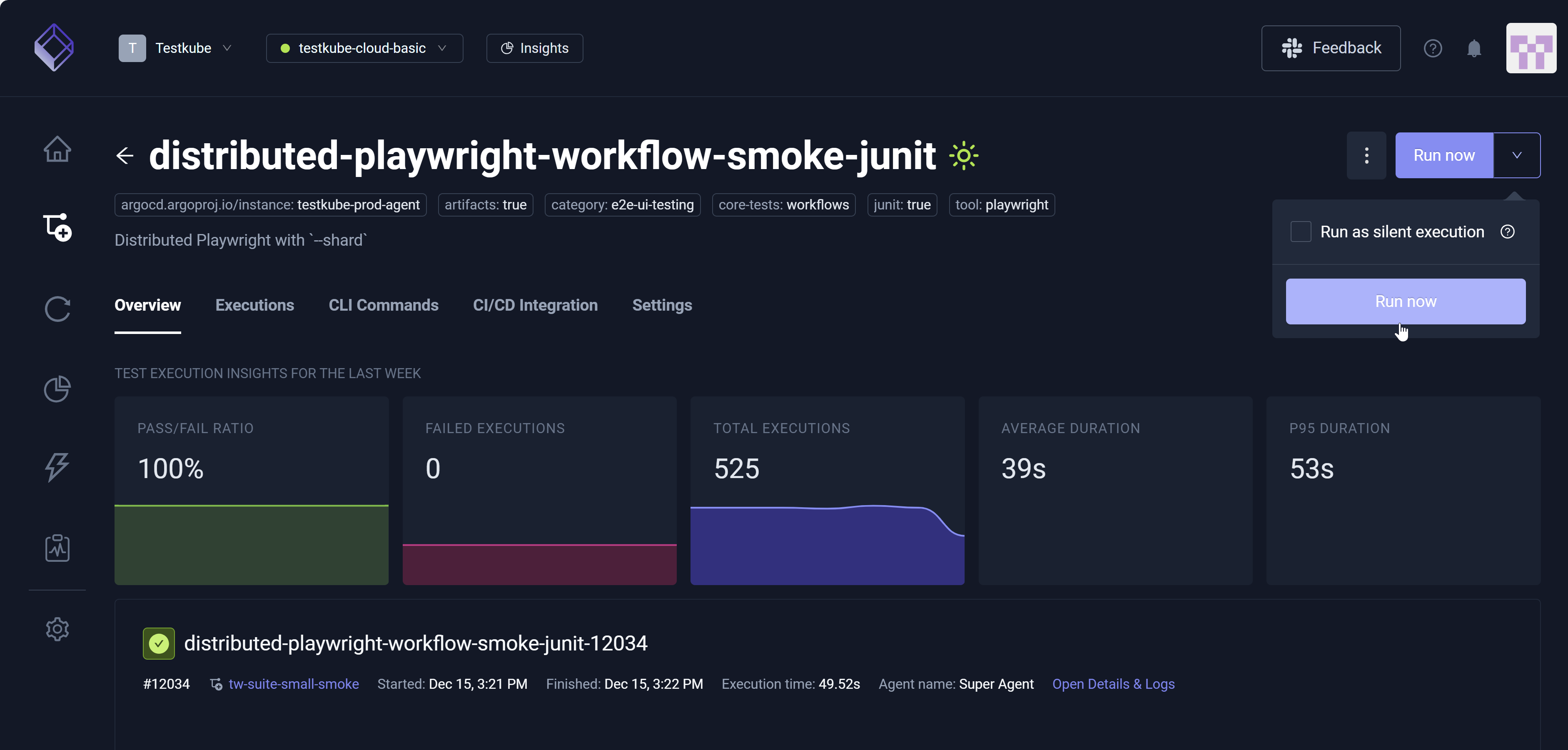

Shows details for the latest execution of the Workflow, selecting an item will open the corresponding log tab in the Execution Details.

Overview

Click Open Detail & Logs to see the Execution Details.

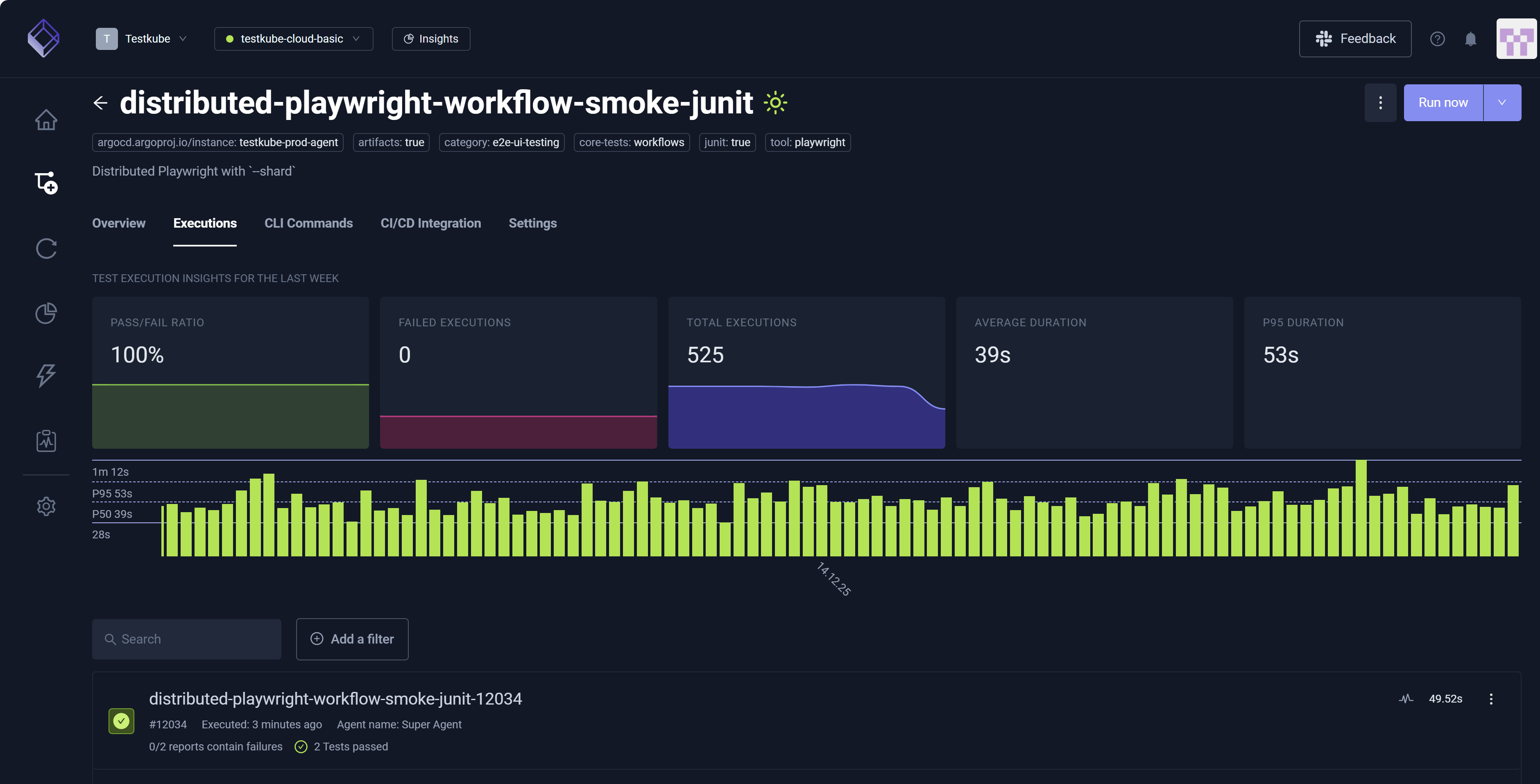

Executions Tab​

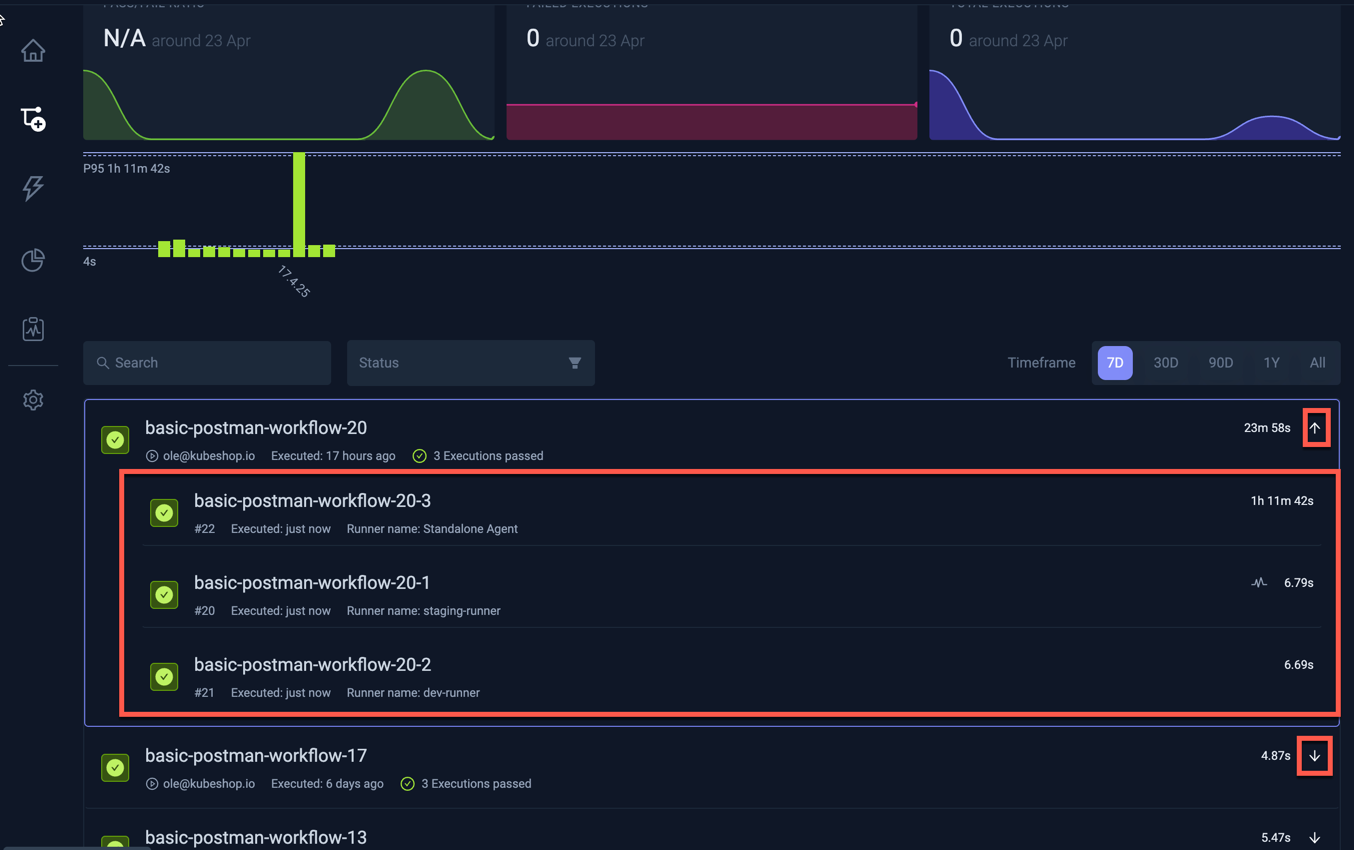

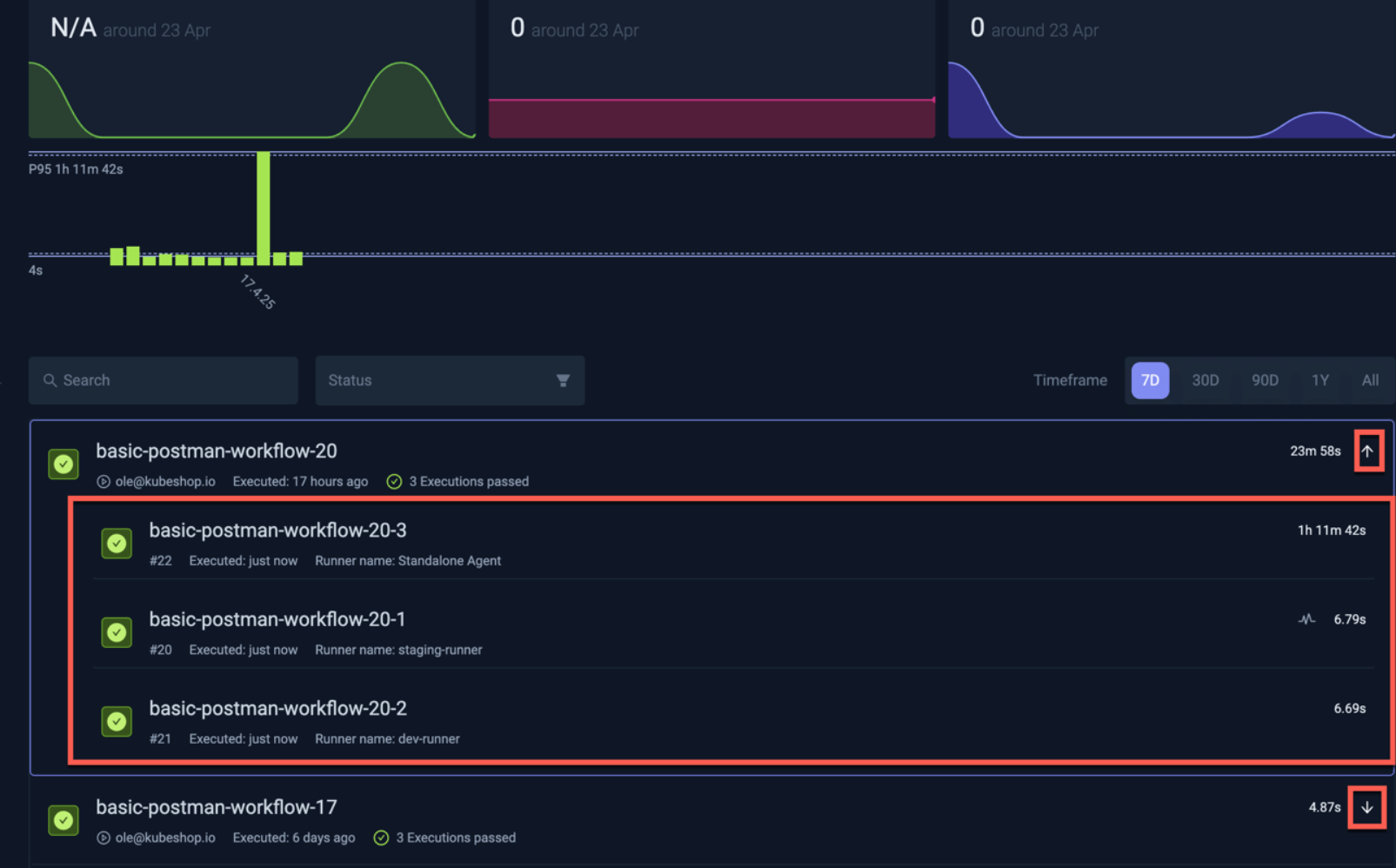

The Executions tab has the list of the workflow executions together with corresponding high-level execution metrics.

A green checkmark denotes a successful execution, a red 'x' denotes a failed execution and circling dots denotes a current run.

Executions

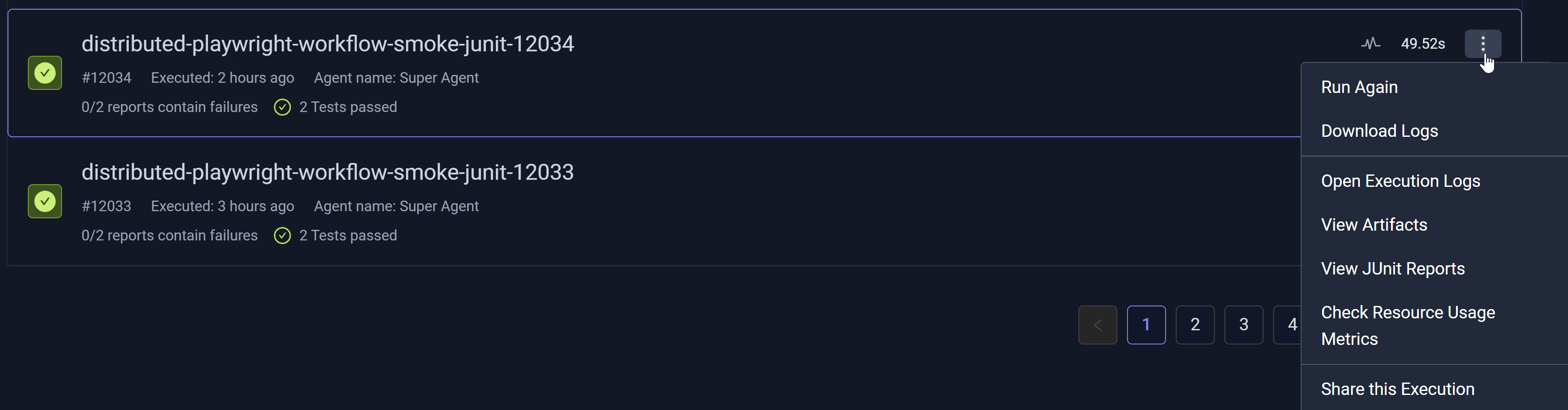

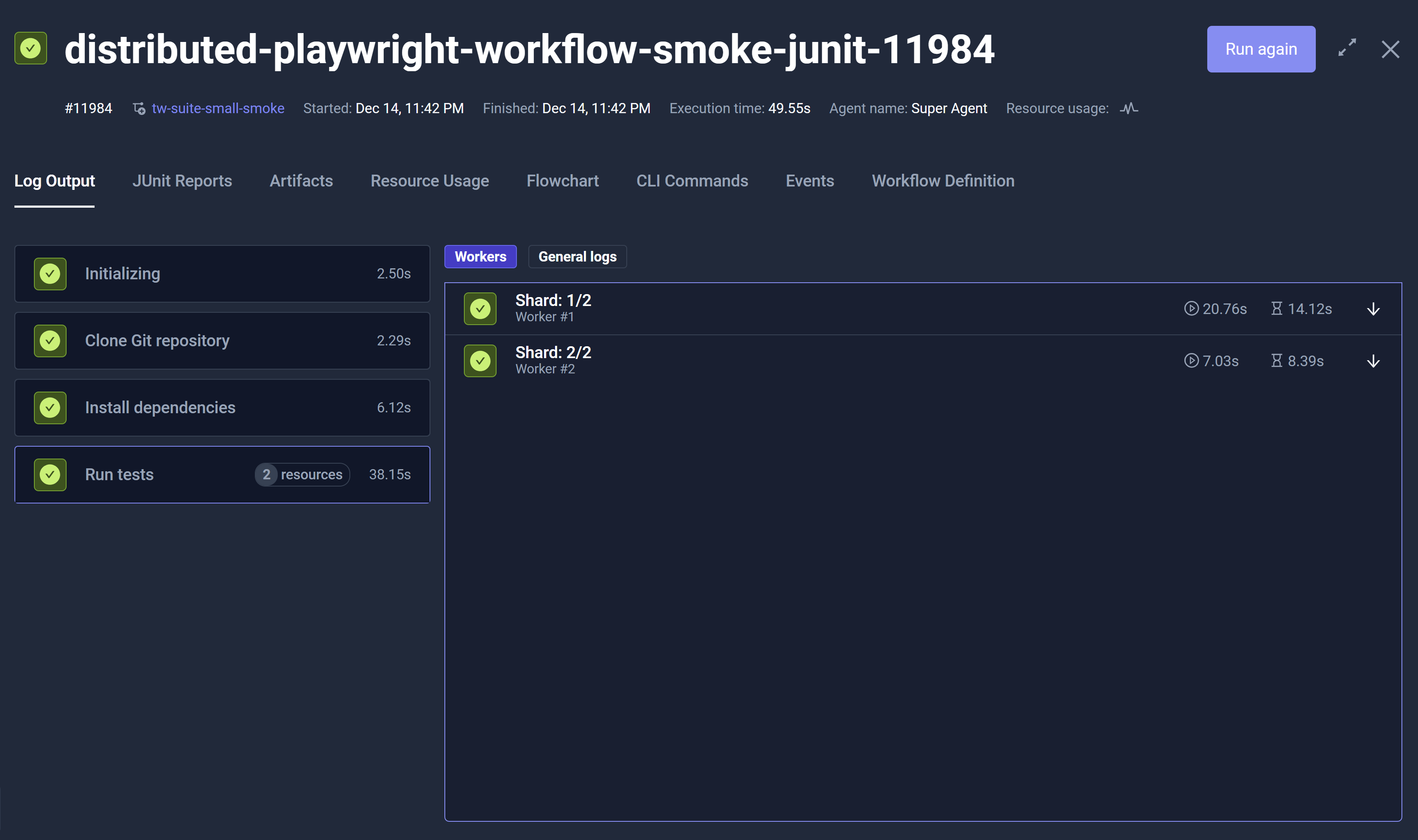

Selecting a specific execution will open the corresponding Execution Details panels.

CLI Commands Tab​

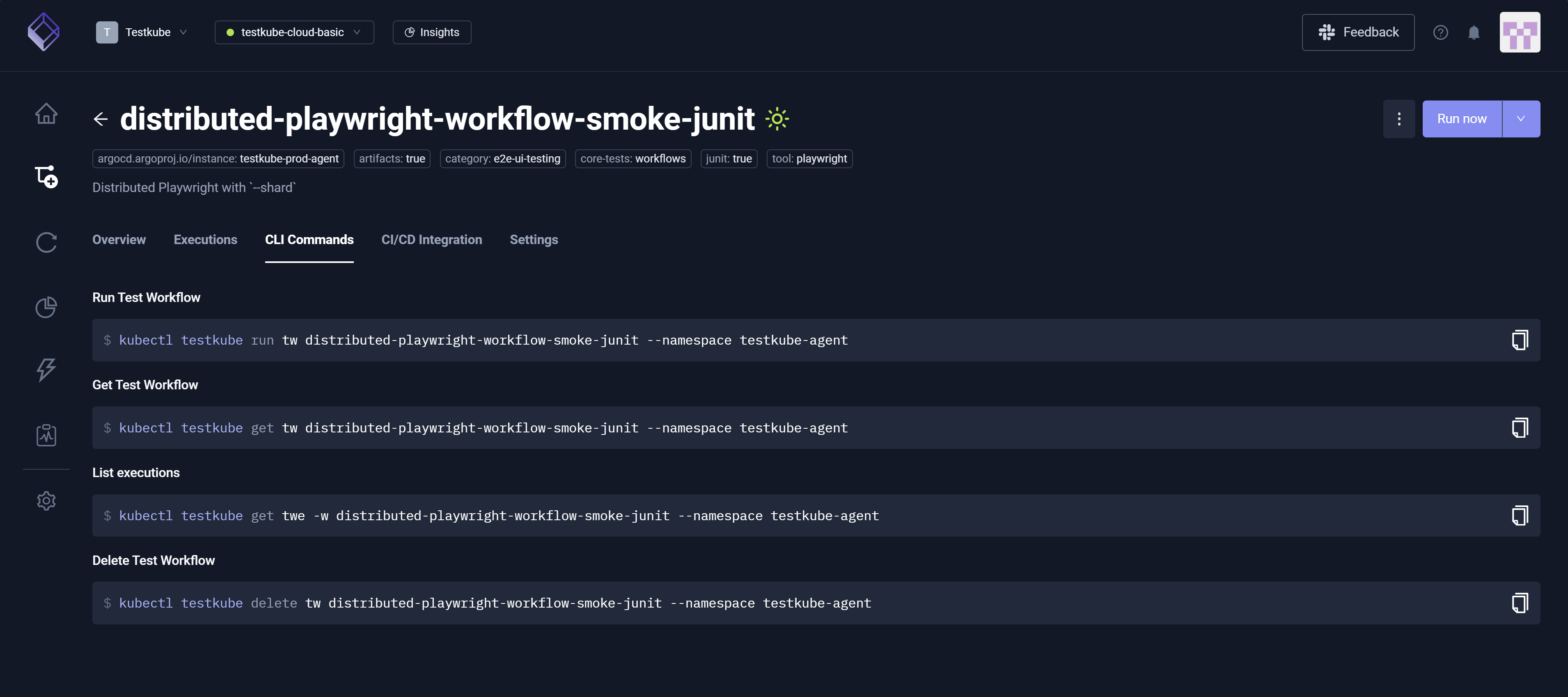

The CLI Commands tab shows commands you can run to interact with the Workflow using the Testkube CLI:

CLI Commands

Workflow Settings Tabs​

The Settings tab contains a number of panels for configuring your Workflow.

info

Almost all the settings in these panels can be configured directly in the Workflow YAML under the Definition panel (see below).

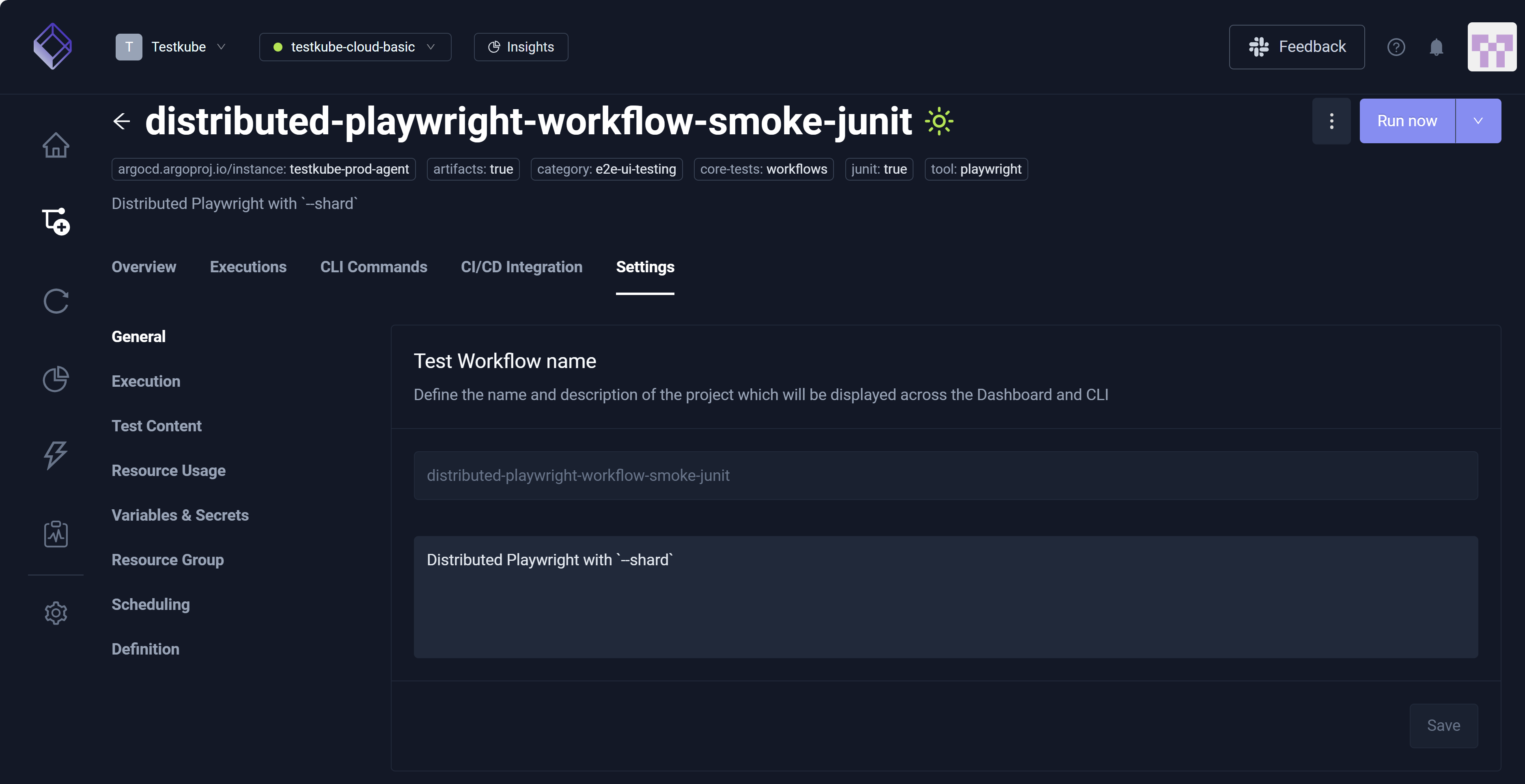

General Settings​

The General Settings allow you to update the following for your Workflow:

  • Test Workflow name: Update the description (the name can only be changed in the YAML Definition panel).
  • Labels: Labels that you want to add to this Workflow for filtering/searching/etc.
  • Timeout: The execution timeout for this Workflow.

Below these settings there are actions to:

  • Delete the Workflow
  • Purge past executions: frees up database/storage space if you have a large number old executions for this Workflow

Settings

Execution Settings​

warning

The execution settings only apply for Workflows that use a single image and step. It is generally recommended to edit the Workflow YAML directly in the Definition panel to ensure that changes are compatible with any other constructs in your Workflow

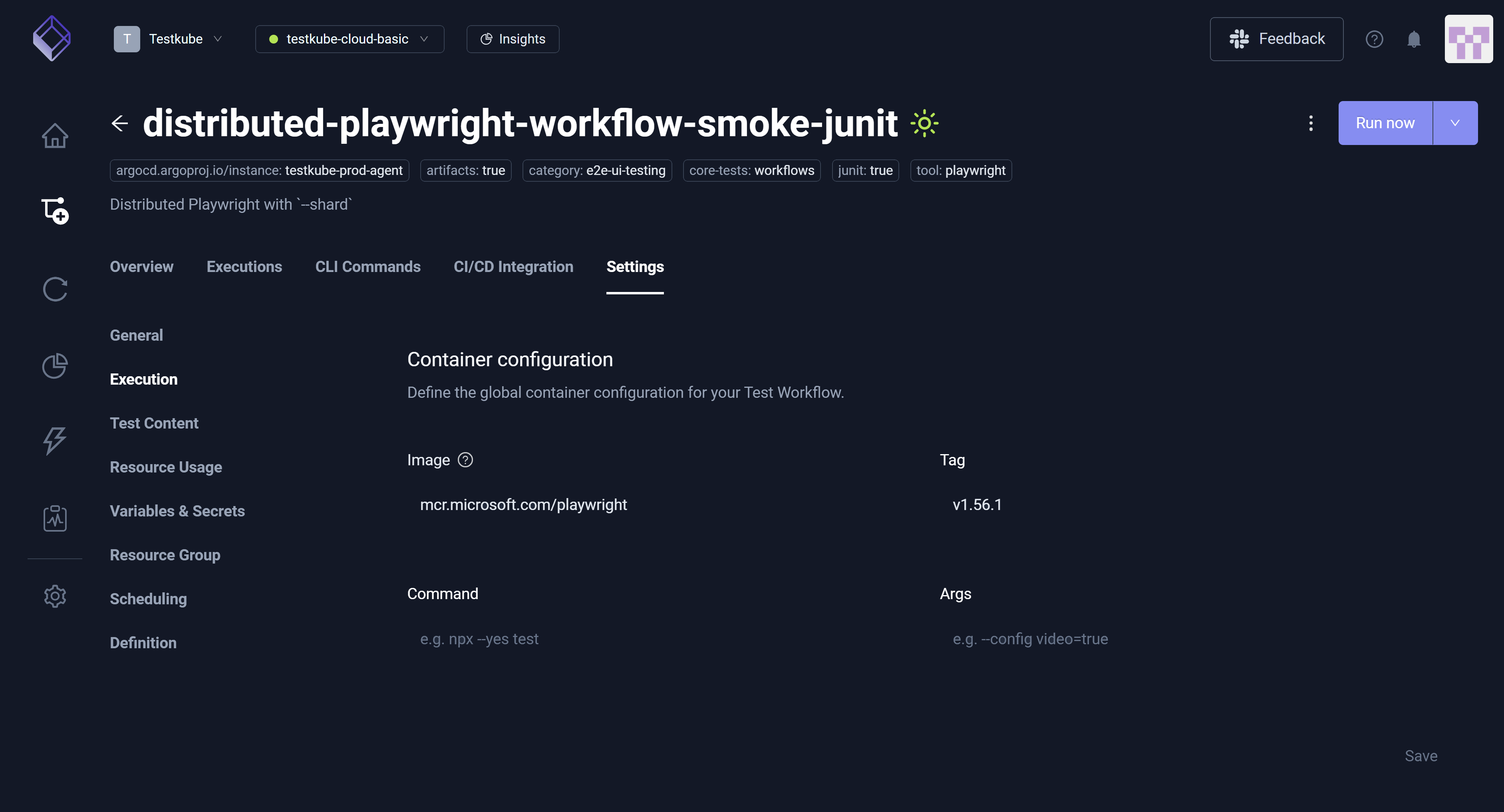

The execution settings allow you to define which Docker image/tag, corresponding command and working directory to use to run your tests.

Execution Settings

Test Content Settings​

tip

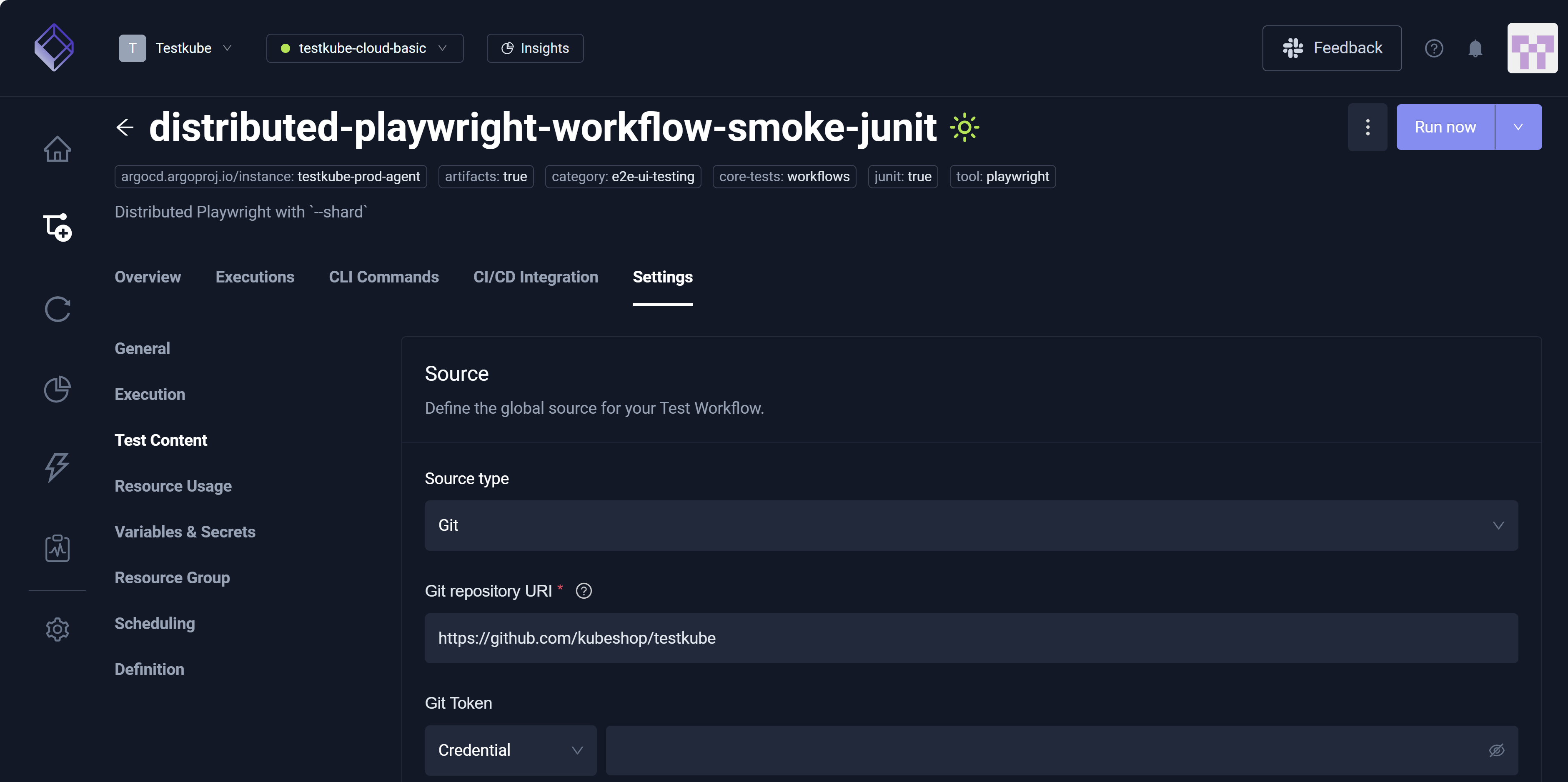

These settings only apply for Workflows that use a content source for their tests. Use the Definition panel to edit the Workflow YAML directly if your Workflow uses more than one source for it's tests.

Test Content Settings

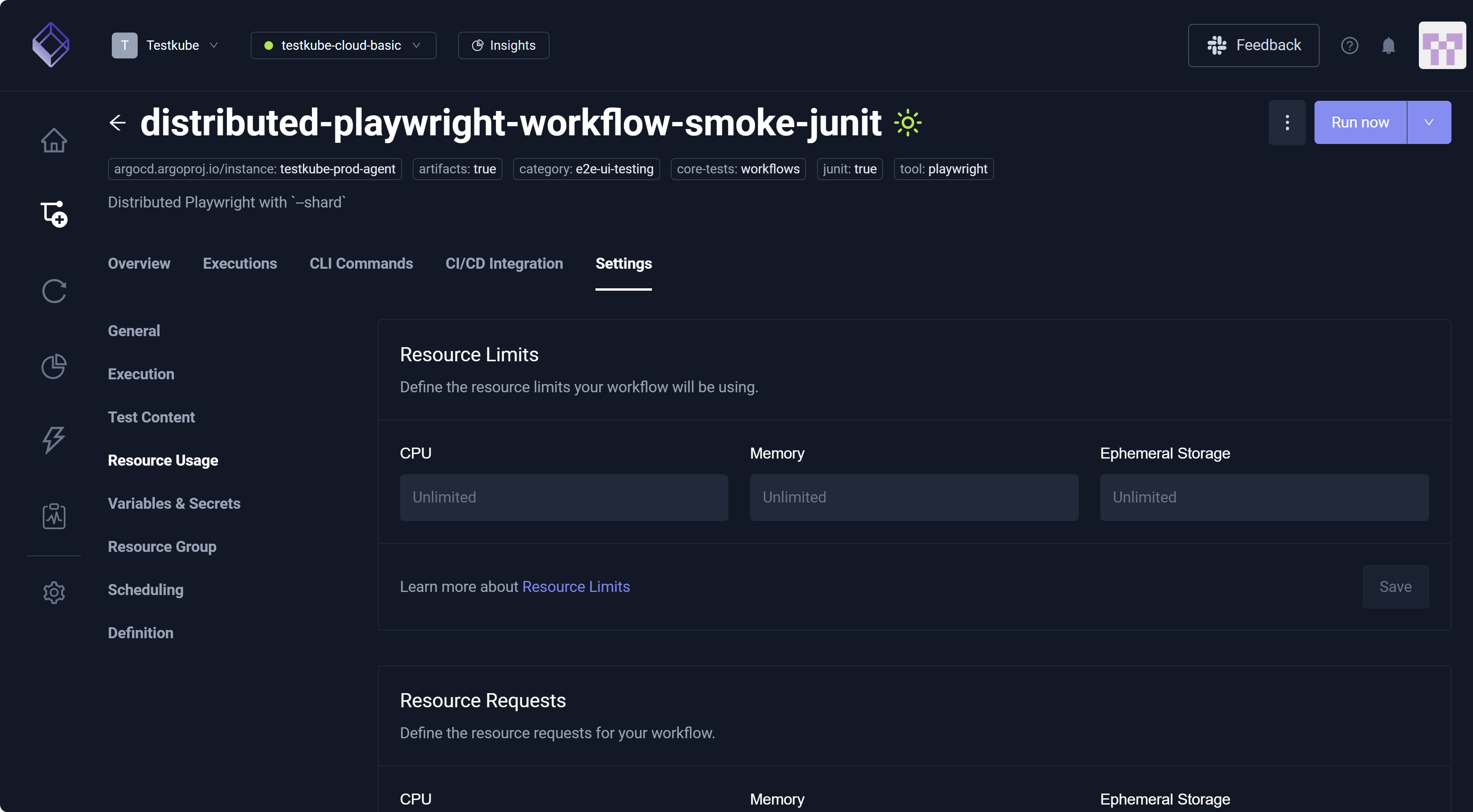

Resource Usage Settings​

tip

These settings set global limits for resource usage within your Workflow - if you want to fine-tune these limits per image or Workflow step you can do this directly in the Workflow YAML under the Definition panel.

Resource Usage Settings

Variables and Secrets​

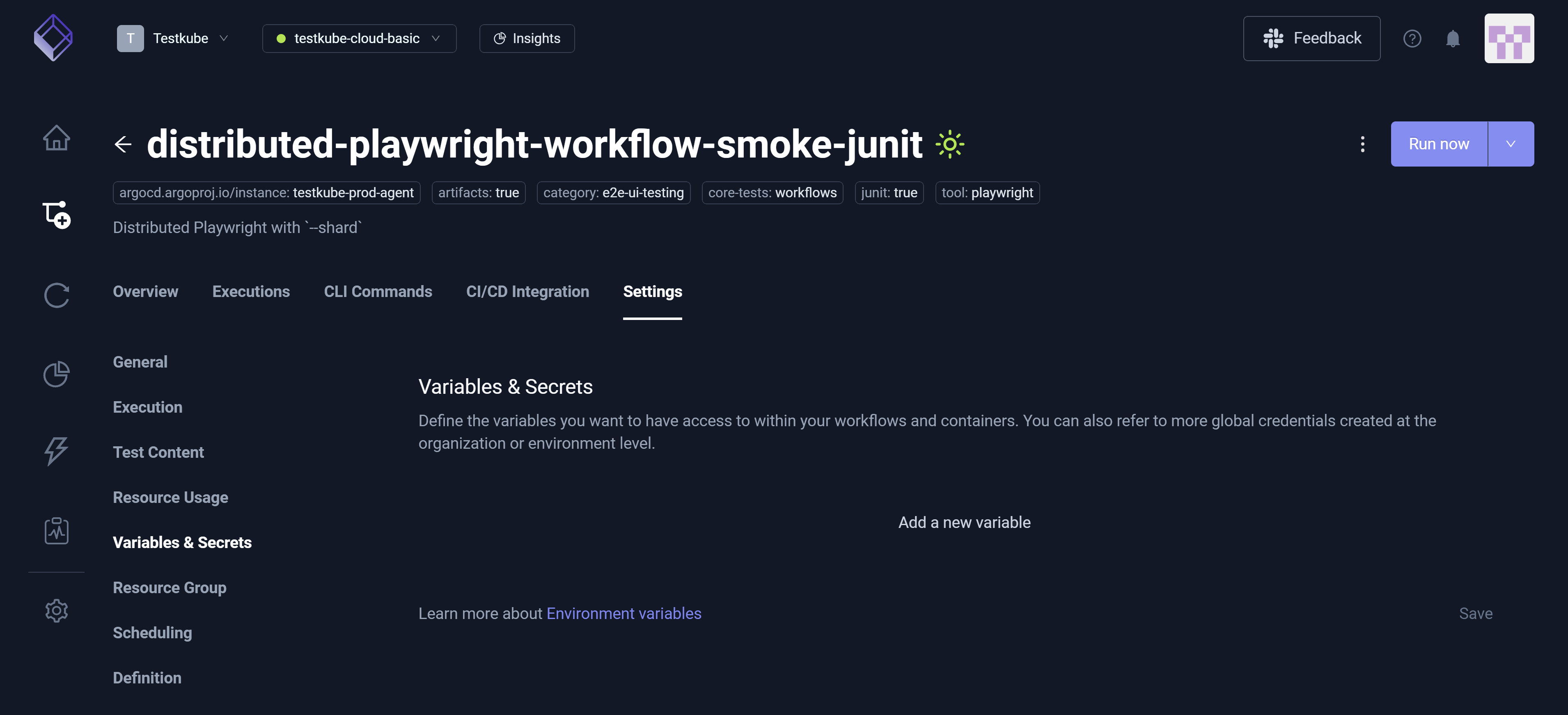

This panel allows you to configure global variables and secrets used by your Workflow.

Variables & Secrets Settings

Scheduling​

tip

This panel allows you to configure a single schedule for your Workflow - if you want to define multiple schedules you can do this directly in the Workflow YAML under the Definition panel.

Read more about Workflow Scheduling in the Scheduling Workflows article.

Use this panel to define a single execution schedule for your Workflow.

Scheduling Settings

Definition​

This panel provides a powerful YAML editor for editing your Workflows - Read More.

Definition Settings

CI/CD Integrations Tab​

The CI/CD Integration tab shows how to integrate the Workflow with common CI/CD tools, with ready-to-use examples for each tool.

CI/CD Integration

tip

Read more about these and other available integrations under the Integrations section.
